CATIA V5 — The Industry Standard for Mechanical Design
An introduction to CATIA V5 and why it remains one of the most widely used CAD platforms for mechanical design and product engineering.
CATIAV5
Introduction
CATIA V5 is a powerful 3D CAD software developed by Dassault Systèmes. For decades, it has been a core engineering tool in automotive, aerospace, heavy machinery, and industrial equipment industries.
Even with newer cloud-based platforms available, CATIA V5 continues to dominate in many enterprises because of its stability, depth of functionality, and proven industry workflows.
It is not just a modeling tool. It is a complete product design system used from concept development to detailed engineering and manufacturing preparation.
Core Capabilities
1. Part Design
CATIA V5 provides parametric solid modeling. Engineers can create fully constrained 3D parts using sketches, features, and design intent.
Design changes update automatically through feature history. This ensures controlled modifications without breaking geometry.

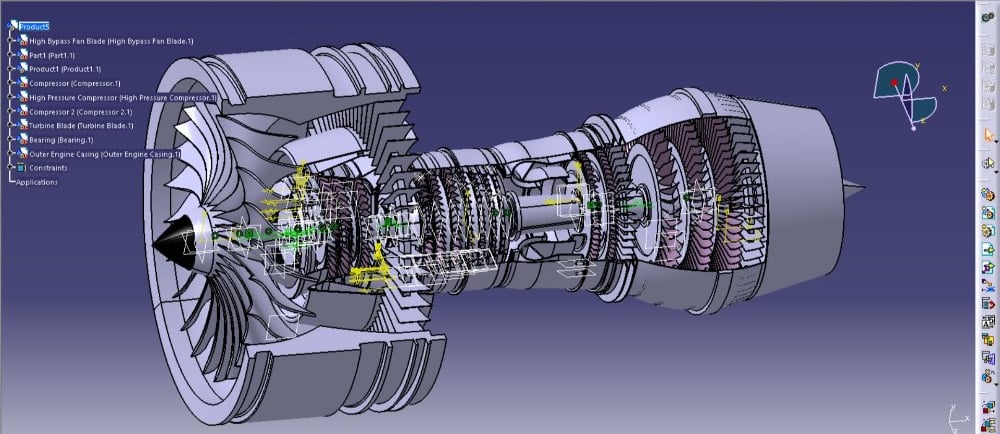

2. Assembly Design
It supports large assembly management with constraints, kinematics, and interference detection.
Engineers can:
Build multi-level product structures
Perform clash analysis
Validate motion and mechanism behavior
This is critical for complex machinery and automotive systems.
3. Surface & Styling (Generative Shape Design)
One of CATIA V5’s biggest strengths is advanced surface modeling.
It allows:
Class-A surface creation
Complex curvature control
Automotive exterior and aerospace aerodynamic surfaces
This is why it is heavily used in automotive body design.
4. Drafting
CATIA V5 generates 2D drawings directly from 3D models.
Key features:
Automatic view generation
GD&T support
BOM extraction
Associative updates
When the 3D model changes, the drawing updates automatically.
5. Manufacturing Integration
It integrates with machining modules for:
Toolpath generation
NC programming
Manufacturing validation
This reduces dependency on third-party CAM tools.
Why Industries Still Use CATIA V5?
Proven stability in enterprise environments
Strong support for large assemblies
Advanced surfacing unmatched in many tools
Deep integration with PLM systems
Widely adopted industry standard
Many global OEMs still rely on CATIA V5 as their primary design backbone.
Final Perspective
CATIA V5 is not trendy. It is established, mature, and industrial-grade.
For mechanical engineers working on complex products, it remains one of the most powerful and reliable CAD systems available.
